使用 Node Exporter 监控 Linux 主机指标

Prometheus Node Exporter 暴露了各种各样的硬件和内核相关指标。

在本指南中,您将

  • localhost 上启动 Node Exporter
  • localhost 上启动 Prometheus 实例,并配置其从正在运行的 Node Exporter 抓取指标
注意: 虽然 Prometheus Node Exporter 用于 *nix 系统,但 Windows 系统有 Windows exporter,其用途类似。

安装和运行 Node Exporter

Prometheus Node Exporter 是一个独立的静态二进制文件,您可以通过 tarball 安装进行安装。 从 Prometheus 下载页面下载后,解压并运行它

# NOTE: Replace the URL with one from the above mentioned "downloads" page.
# <VERSION>, <OS>, and <ARCH> are placeholders.
wget https://github.com/prometheus/node_exporter/releases/download/v<VERSION>/node_exporter-<VERSION>.<OS>-<ARCH>.tar.gz
tar xvfz node_exporter-*.*-amd64.tar.gz
cd node_exporter-*.*-amd64
./node_exporter

您应该看到如下输出,表明 Node Exporter 正在运行并在端口 9100 上暴露指标

INFO[0000] Starting node_exporter (version=0.16.0, branch=HEAD, revision=d42bd70f4363dced6b77d8fc311ea57b63387e4f)  source="node_exporter.go:82"
INFO[0000] Build context (go=go1.9.6, user=root@a67a9bc13a69, date=20180515-15:53:28)  source="node_exporter.go:83"
INFO[0000] Enabled collectors:                           source="node_exporter.go:90"
INFO[0000]  - boottime                                   source="node_exporter.go:97"
...
INFO[0000] Listening on :9100                            source="node_exporter.go:111"

Node Exporter 指标

一旦 Node Exporter 安装并运行,您可以通过 cURL /metrics 端点来验证指标是否正在导出

curl https://127.0.0.1:9100/metrics

您应该看到如下输出

# HELP go_gc_duration_seconds A summary of the GC invocation durations.
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 3.8996e-05
go_gc_duration_seconds{quantile="0.25"} 4.5926e-05
go_gc_duration_seconds{quantile="0.5"} 5.846e-05
# etc.

成功!Node Exporter 现在正在暴露 Prometheus 可以抓取的指标,包括输出中更靠下位置的各种系统指标(以 node_ 为前缀)。要查看这些指标(以及帮助和类型信息)

curl https://127.0.0.1:9100/metrics | grep "node_"

配置您的 Prometheus 实例

您本地运行的 Prometheus 实例需要正确配置才能访问 Node Exporter 指标。 以下 prometheus.yml 示例配置文件将告诉 Prometheus 实例从 localhost:9100 通过抓取 Node Exporter,以及抓取频率。

global:
  scrape_interval: 15s

scrape_configs:
- job_name: node
  static_configs:
  - targets: ['localhost:9100']

要安装 Prometheus,请下载最新版本,适用于您的平台并解压它

wget https://github.com/prometheus/prometheus/releases/download/v*/prometheus-*.*-amd64.tar.gz
tar xvf prometheus-*.*-amd64.tar.gz
cd prometheus-*.*

一旦 Prometheus 安装完成,您就可以启动它,使用 --config.file 标志指向您在 上面创建的 Prometheus 配置文件

./prometheus --config.file=./prometheus.yml

通过 Prometheus 表达式浏览器探索 Node Exporter 指标

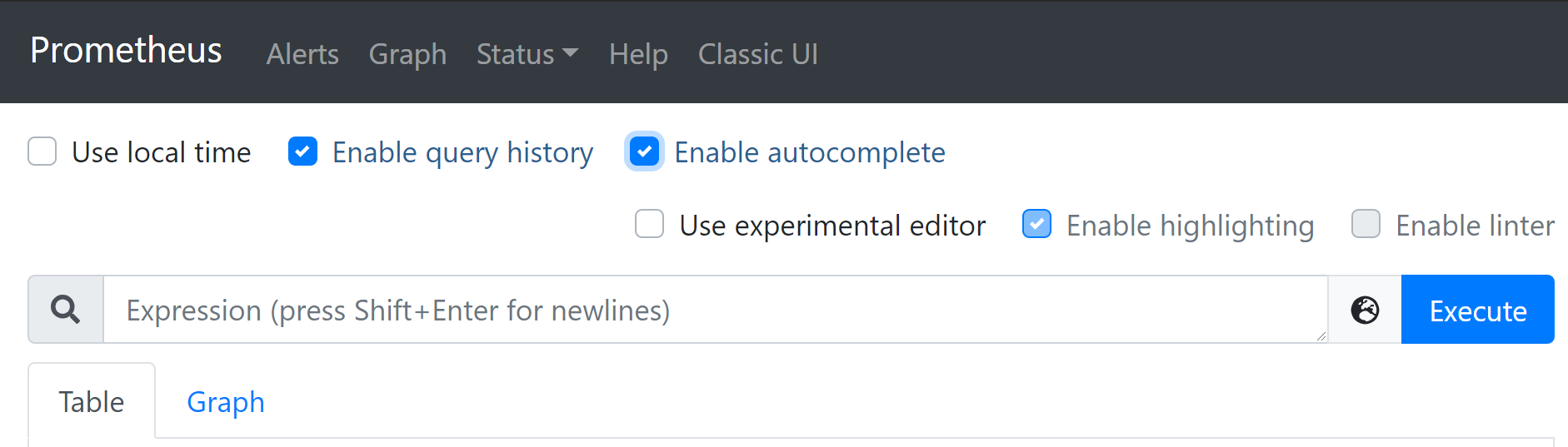

现在 Prometheus 正在从运行的 Node Exporter 实例抓取指标,您可以使用 Prometheus UI(也称为 表达式浏览器)探索这些指标。 在您的浏览器中导航到 localhost:9090/graph,并使用页面顶部的表达式栏输入表达式。 表达式栏看起来像这样

Prometheus expressions browser

特定于 Node Exporter 的指标以 node_ 为前缀,包括 node_cpu_seconds_totalnode_exporter_build_info 等指标。

单击下面的链接查看一些指标示例

指标 含义
rate(node_cpu_seconds_total{mode="system"}[1m]) 过去一分钟内,每秒在系统模式下花费的平均 CPU 时间(以秒为单位)
node_filesystem_avail_bytes 非 root 用户可用的文件系统空间(以字节为单位)
rate(node_network_receive_bytes_total[1m]) 过去一分钟内,每秒接收的平均网络流量(以字节为单位)
